BLMM-1800

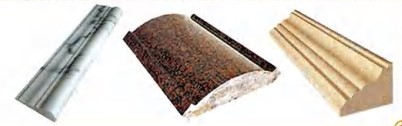

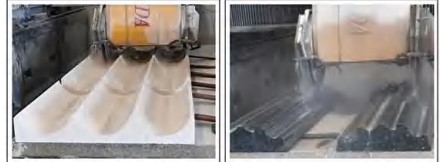

This machine is with 3 axis CNC system, including the rough cutting, fine cutting, finish milling etc. The structure is bridge type. Blade lifting by guide pillar and with copper bush. It combines the power of profiling machine and accuracy of linear guide, ball screw rod. With the advantages of high efficiency, high accuracy, high stability. The system includes rough cutting, fine cutting, precision milling functions, specially used for processing linear, square baluster and special shapes of kerbstone.
Technical Specifications
Blade diameter
BLMM-1800: Φ350 – Φ600 mm (Φ13.78 – Φ23.62 in)
Max lifting travel of cutting frame
BLMM-1800: 450 mm (17.72 in)
Trolley size
BLMM-1800: 1800 × 3500 mm (70.87 × 137.80 in)
Max processing length
BLMM-1800: 3500 mm (137.80 in)
Main motor
BLMM-1800: 15 / 18.5 (Optional) kw (20.12 / 24.81 (Optional) hp)
Gross power
BLMM-1800: 21 / 24.5 (Optional) kw (28.16 / 32.85 (Optional) hp)
Outline dimension
BLMM-1800: 3950 × 5300 × 2550 mm (155.51 × 208.66 × 100.39 in)
Water consumption
BLMM-1800: ~3
