ZDDR-400
This machine adopts bridge structure, front and rear double screw drive, and permanent magnet frequency conversion speed regulation. It has the advantages of high slicing accuracy, energy saving, simple operation, strong stability and high efficiency etc.
Technical Specifications
Maximum drilling diameter
ZDDR-400: Φ400 mm (Φ15.75 in)
X Left and right travel
ZDDR-400: 2500 mm (98.43 in)
Y Axis front and back travel
ZDDR-400: 1500 mm (59.06 in)
Z Axis lifting travel
ZDDR-400: 750 mm (29.53 in)
Main motor power
ZDDR-400: 15kw-6级 (Permanent magnet motor) kw (20.12kw-8.05级 (Permanent magnet motor) hp)
Drill barrel speed adjustment
ZDDR-400: Includes
Total power
ZDDR-400: 18 kw (24.14 hp)
Total weight
ZDDR-400: ≈3000 kg (≈3.00 t)
Water consumption
ZDDR-400: ≈3
Outline dimensions
ZDDR-400: 4500 × 3200 × 3500 (Including concrete foundation) mm (177.17 × 125.98 × 137.80 (Including concrete foundation) in)
Why Choose Us
-
Bridge Structure
Robust bridge design for maximum stability during heavy-duty drilling operations.
-
Permanent Magnet Motor
Equipped with frequency conversion for energy saving and precise speed control.
-
Double Screw Drive
Front and rear double screw system ensures high slicing and positioning accuracy.
Industrial Versatility

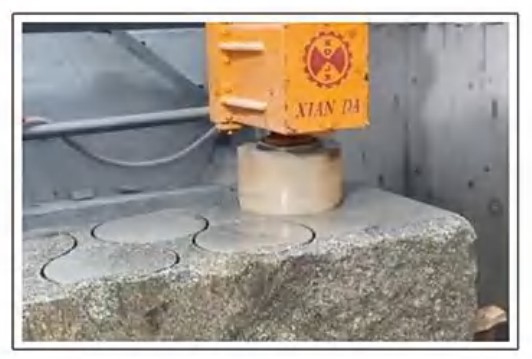

Ideal for precise vertical drilling in stone processing, offering high efficiency and low energy consumption.
