PEM - 3020 (2D / 3D / 4D)
This machine adopts numerical control system, three-axis linkage, double row four-row slider, constant power spindle motor, two-way tool cooling system, with stable running, high precision and high efficiency advantages, suitable for processing marble, granite, bluestone, jade, agate, copper plate and aluminum plate and other materials.
Technical Specifications
Dimension of worktable (mm)
PEM-3020-2D: 3000 × 2000 (118.11 × 78.74 in)
PEM-3020-3D: 3000 × 2000 (118.11 × 78.74 in)
PEM-3020-4D: 3000 × 2000 (118.11 × 78.74 in)
Feed height (mm)
PEM-3020-2D: ≤450
PEM-3020-3D: ≤450
PEM-3020-4D: ≤450
Air speed (m/min)
PEM-3020-2D: 19
PEM-3020-3D: 17
PEM-3020-4D: 15
Number of spindles (pcs)
PEM-3020-2D: 2
PEM-3020-3D: 3
PEM-3020-4D: 4
Spindle Power (kw)
PEM-3020-2D: 5.5 × 2 (0.22 × 0.08 in)
PEM-3020-3D: 5.5 × 3 (0.22 × 0.12 in)
PEM-3020-4D: 5.5 × 4 (0.22 × 0.16 in)
Outline dimension (mm)
PEM-3020-2D: 4200 × 2950 × 2200 (165.35 × 116.14 × 86.61 in)
PEM-3020-3D: 4200 × 2950 × 2200 (165.35 × 116.14 × 86.61 in)
PEM-3020-4D: 4200 × 2950 × 2200 (165.35 × 116.14 × 86.61 in)
Water consumption (m³/h)
PEM-3020-2D: ≈2
PEM-3020-3D: ≈3
PEM-3020-4D: ≈4

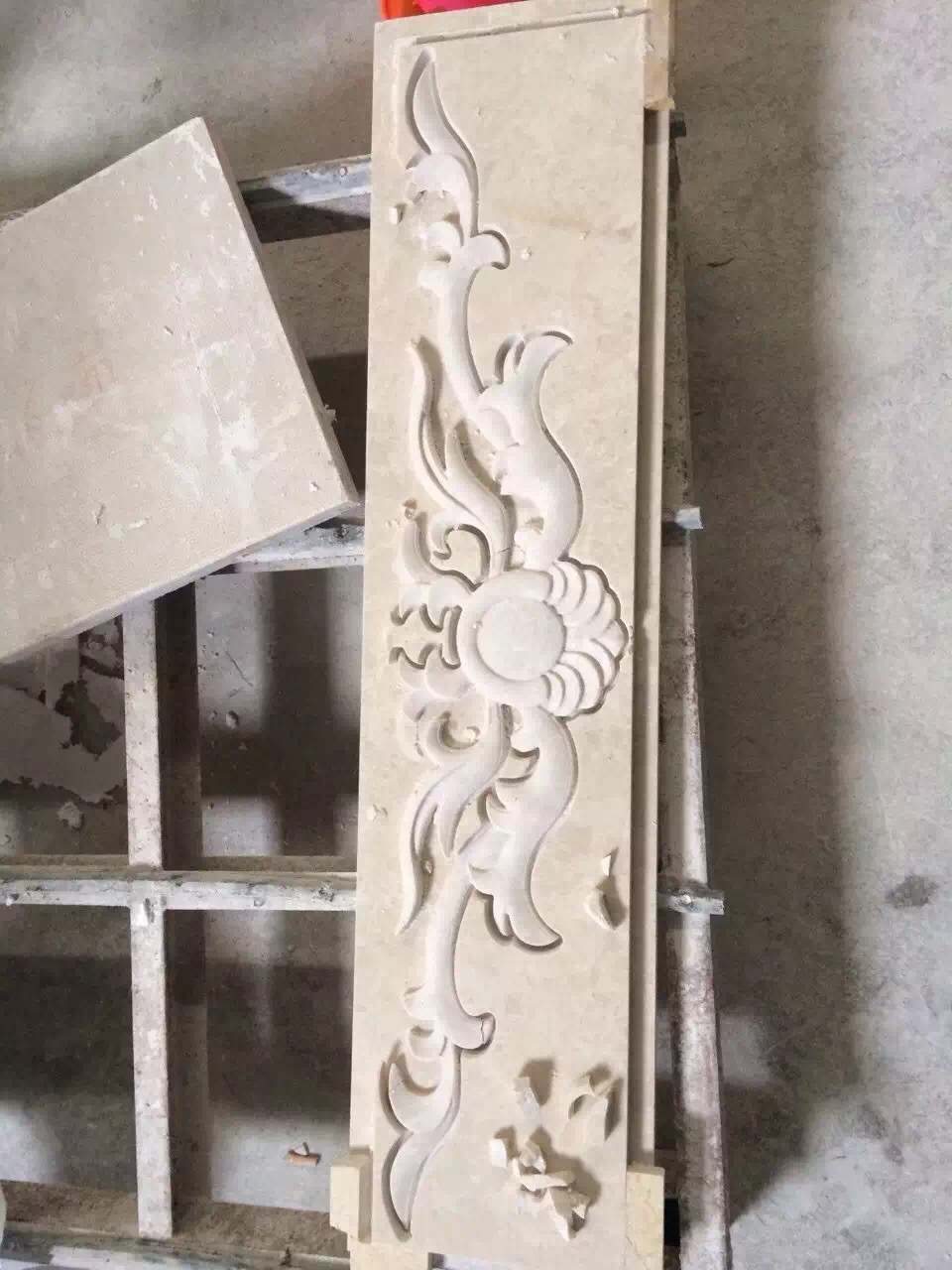

Machine in Action
Why Choose Us
-
4-Head Simultaneous Work
Process four identical or different patterns at once — perfect for batch production and artistic series.
-
4D Texture Capability
4D mode creates layered surface textures with varied depths for dimensional artistic effects.
-
Production Management HMI
Built-in job tracking, nesting, and production scheduling for multi-shift operations.
Industrial Versatility
Suited for high-volume tile production, large stone fabricators, and artistic studios requiring both speed and creative flexibility.
