ZDQJ - 450 / 600 / 800
This machine is controlled by microcomputer, its worktable can be 90°/360° rotating. Special structure for the guide pulley and side beam makes its cutting high accuracy, high stability, high efficiency. It's especially suitable for processing large granite and marble plates.
Technical Specifications
Blade diameter (mm)
ZDQJ-450: Φ300 – Φ450 (Φ11.81 – Φ17.72 in)
ZDQJ-600: Φ350 – Φ600 (Φ13.78 – Φ23.62 in)
ZDQJ-800: Φ500 – Φ800 (Φ19.69 – Φ31.50 in)
Max processing size (mm)
ZDQJ-450: 3200 × 2000 × 100 (125.98 × 78.74 × 3.94 in)
ZDQJ-600: 3200 × 2000 × 170 (125.98 × 78.74 × 6.69 in)
ZDQJ-800: 3200 × 2000 × 270 (125.98 × 78.74 × 10.63 in)
Trolley size (mm)
ZDQJ-450: 3200 × 2000 (125.98 × 78.74 in)
ZDQJ-600: 3200 × 2000 (125.98 × 78.74 in)
ZDQJ-800: 3200 × 2000 (125.98 × 78.74 in)

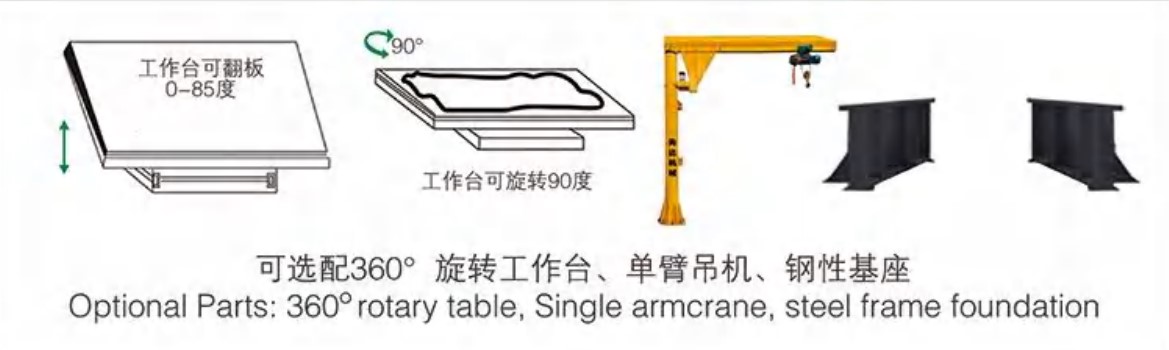

Worktable tilting angle (°)
ZDQJ-450: 0, 85°
ZDQJ-600: 0, 85°
ZDQJ-800: 0, 85°
Worktable rotating angle (°)
ZDQJ-450: 0, 90°/0–360°(Optional)
ZDQJ-600: 0, 90°/0–360°(Optional)
ZDQJ-800: 0, 90°/0–360°(Optional)
Main motor (kw)
ZDQJ-450: 15
ZDQJ-600: 18.5/22(Optional)
ZDQJ-800: 22
Gross power (kw)
ZDQJ-450: 20.5
ZDQJ-600: 24/27.5(Optional)
ZDQJ-800: 27.5
Water consumption (m³/h)
ZDQJ-450: ≈2
ZDQJ-600: ≈2
ZDQJ-800: ≈2
Outline dimension (mm)
ZDQJ-450: 5850 × 4750 × 2700 (230.31 × 187.01 × 106.30 in)
ZDQJ-600: 5850 × 4750 × 3000 (230.31 × 187.01 × 118.11 in)
ZDQJ-800: 5850 × 4750 × 3400 (230.31 × 187.01 × 133.86 in)
Gross weight (kg)
ZDQJ-450: ≈5500
ZDQJ-600: ≈5750
ZDQJ-800: ≈6000

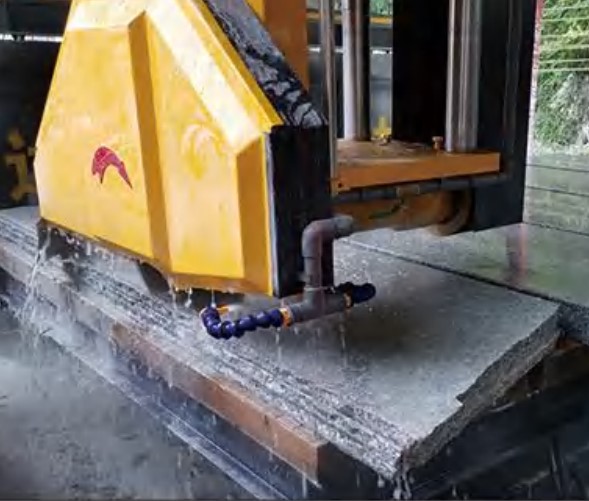

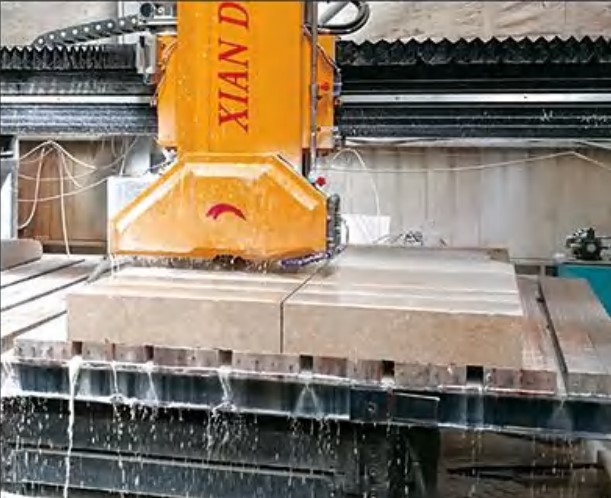

Machine in Action
Why Choose Us
-
Heavy-Duty Bridge Design
Robust welded steel construction minimizes vibration for superior cut quality on large stone slabs.
-
Precision Ball Screw Drive
High-precision ball screws and linear guides ensure smooth motion and accurate positioning.
-
Smart Control System
Intuitive CNC interface with real-time monitoring and adaptive feed rate control for optimal performance.
