SCM-300/600-2 CCM-300/600-2

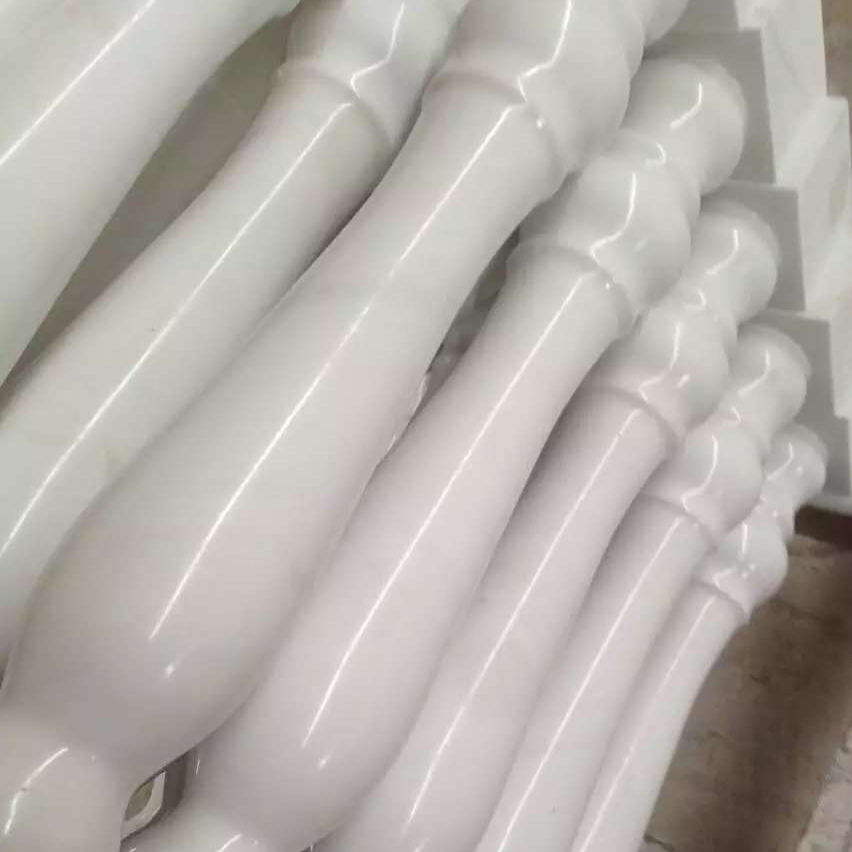

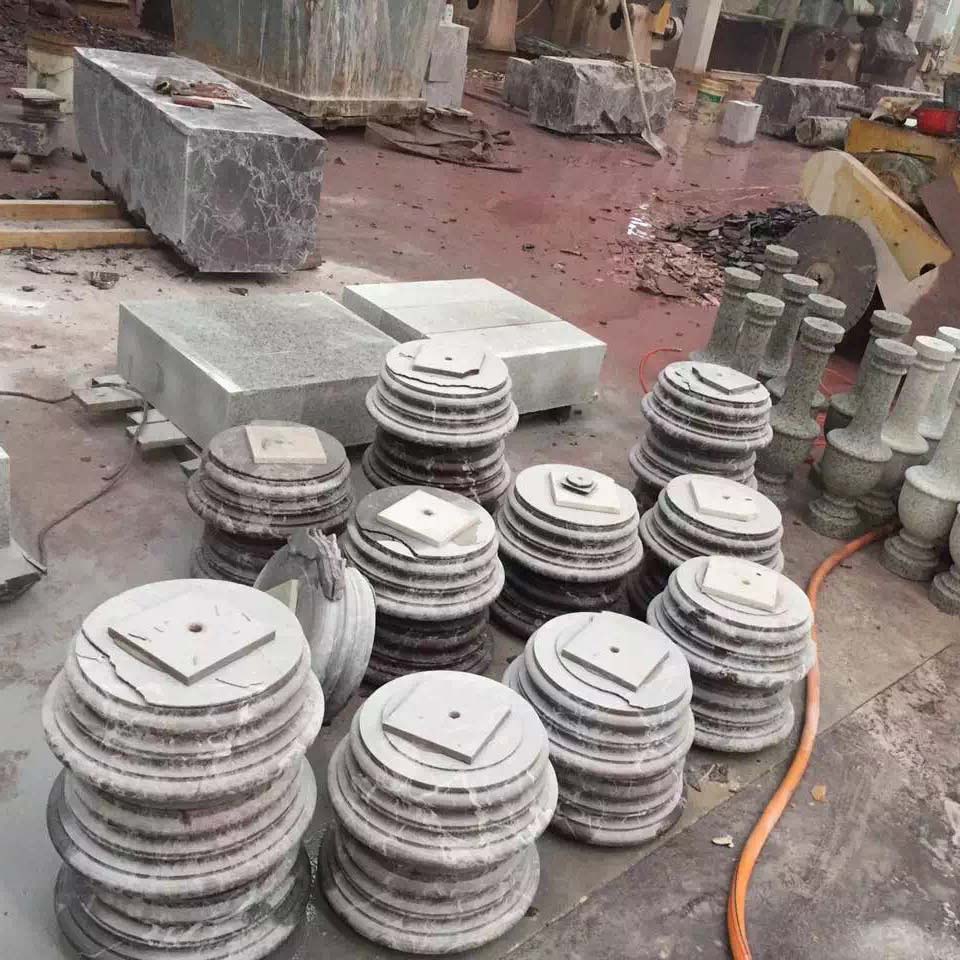

This machine adopts PLC / CNC system, three inverter,simple and practical structure, high efficiency. Dedicated to the processing of pillar, column base column caps, roadblock ,etc.
Technical Specifications
Maximum blade diameter
SCM-300/600-2 CCM-300/600-2: Φ 600 mm (Φ 23.62 in)
Max processing diameter
SCM-300/600-2 CCM-300/600-2: Φ 300/2pcs, Φ 600/1pcs mm (Φ 11.81/0.08pcs, Φ 23.62/0.04pcs in)
Processing length
SCM-300/600-2 CCM-300/600-2: 100-3500 mm (3.94-137.80 in)
Main motor (Optional)
SCM-300/600-2 CCM-300/600-2: 11/15 kw (14.75/20.12 hp)
Gross power (Optional)
SCM-300/600-2 CCM-300/600-2: 17.5/21.5 kw (23.47/28.83 hp)
Outline dimension
SCM-300/600-2 CCM-300/600-2: 5600 × 1800 × 3800 mm (220.47 × 70.87 × 149.61 in)
Gross weight
SCM-300/600-2 CCM-300/600-2: ≈5000 kg (≈5.00 t)
Water consumption
SCM-300/600-2 CCM-300/600-2: ≈2
Machine in Action
Why Choose Us
-
Large Panel Support
Accommodates monumental stone panels up to 6 meters — ideal for façade cladding and public art.
-
Dual-Head Choreography
Program different depths and patterns for each head to create complex composite artistic effects.
-
Heavy-Duty Coolant Supply
Industrial-grade coolant pump and circulation system handles large stone volume with efficient cooling.
Industrial Versatility
Ideal for monument studios, public art fabricators, building façade specialists, and large-scale architectural carving.
