DTWS-2000-13

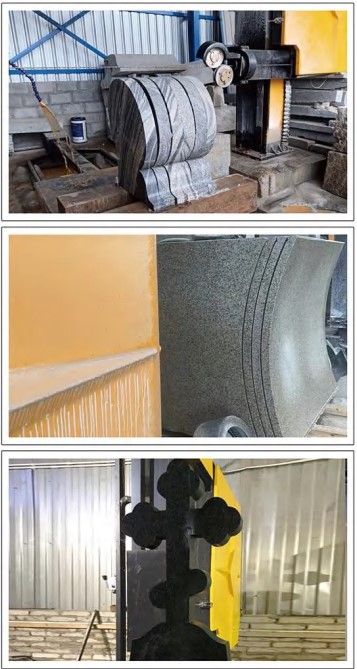

DTWS-2000-13 is a heavy-duty profiling diamond wire saw machine equipped with CNC control and multi-wire configuration for processing larger decorative stone components, memorial products, columns, and customized artistic stone structures.
Technical Specifications
Max Processing Size
DTWS-2000-13: 2000 × 3000 × 1200 mm (78.74 × 118.11 × 47.24 in)
Trolley Size
DTWS-2000-13: 1300 × 2500 mm (51.18 × 98.43 in)
Table Bearing Weight
DTWS-2000-13: 15
Wire Quantity
DTWS-2000-13: 13
Wire Speed
DTWS-2000-13: 20 – 40
Main Motor
DTWS-2000-13: 11 kW (14.75 hp)
Gross Power
DTWS-2000-13: 17 kW (22.80 hp)
Outline Dimension
DTWS-2000-13: 6800 × 6300 × 3300 mm (267.72 × 248.03 × 129.92 in)
Gross Weight
DTWS-2000-13: ≈ 5000 kg (≈ 5.00 t)
Water Consumption
DTWS-2000-13: ≈ 3
Why Choose Us
-
High Precision CNC System
Advanced control system enables smooth and precise cutting of complex stone geometries.
-
Large Scale Processing
Suitable for larger stone blocks and decorative applications requiring extended processing capacity.
-
Heavy Duty Construction
Robust machine structure ensures stable operation and long service life in industrial environments.
Industrial Versatility
Ideal for large-scale memorial stone processing units and manufacturers producing customized architectural stone elements.
