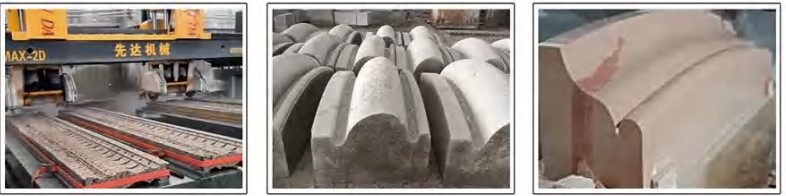

BLMM-1800MAX-2D-A/B
This machine adopts three-axis CNC system control, bridge double beam heavy structure. Cutting Head lifting structure uses four guide column + sleeve copper, left right travelling use bottom wheel, combined with the accuracy of linear guide rail and the power of profiling machine. It has the advantages of high stroke, high efficiency, high stability, etc. The system includes rough cutting, fine cutting, fine milling and other functions, and is suitable for large-scale special-shaped stone processing.
Technical Specifications
Blade diameter
BLMM-1800MAX-2D-A: Φ400 - Φ700 mm (Φ15.75 - Φ27.56 in)
BLMM-1800MAX-2D-B: Φ400 - Φ700 mm (Φ15.75 - Φ27.56 in)
Lifting travel
BLMM-1800MAX-2D-A: 600 mm (23.62 in)
BLMM-1800MAX-2D-B: 600 mm (23.62 in)
Processing length
BLMM-1800MAX-2D-A: 3500 mm (137.80 in)
BLMM-1800MAX-2D-B: 3500 mm (137.80 in)
Trolley size
BLMM-1800MAX-2D-A: 1800 × 3500 × 2pcs mm (70.87 × 137.80 × 0.08pcs in)
BLMM-1800MAX-2D-B: 1800 × 3500 × 2pcs mm (70.87 × 137.80 × 0.08pcs in)
Main motor
BLMM-1800MAX-2D-A: 18.5×2 / 22×2 (Optional) kw (24.81×2.68 / 29.50×2.68 (Optional) hp)
BLMM-1800MAX-2D-B: 18.5×2 / 22×2 (Optional) kw (24.81×2.68 / 29.50×2.68 (Optional) hp)
Gross power
BLMM-1800MAX-2D-A: 46 / 53 (Optional) kw (61.69 / 71.07 (Optional) hp)
BLMM-1800MAX-2D-B: 46.5 / 53.5 (Optional) kw (62.36 / 71.74 (Optional) hp)
Y axis transmission structure
BLMM-1800MAX-2D-A: Walking Wheel
BLMM-1800MAX-2D-B: Linear guide
Y axis transmission mode
BLMM-1800MAX-2D-A: Single Y axis drive
BLMM-1800MAX-2D-B: Dual Y axis drive
Outline dimension
BLMM-1800MAX-2D-A: 6450 × 6300 × 3600 mm (253.94 × 248.03 × 141.73 in)
BLMM-1800MAX-2D-B: 6200 × 6200 × 3600 mm (244.09 × 244.09 × 141.73 in)
Water consumption
BLMM-1800MAX-2D-A: ≈ 6
BLMM-1800MAX-2D-B: ≈ 6
