FHRC-250/500-4 CHRC-250/500-4

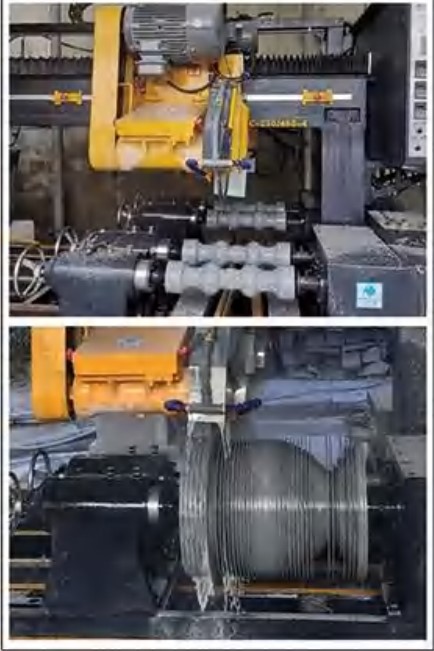

This machine adopts PLC / CNC system, frequency control, synchronous lifting and left-right walking. It is practical, efficient, and easy to operate. Specially designed for processing balusters, pillars, column bases and caps, roadblocks, and similar cylindrical stone elements.
Technical Specifications
Maximum blade diameter
FHRC-250/500-4: Φ 500 mm (Φ 19.69 in)
CHRC-250/500-4: Φ 500 mm (Φ 19.69 in)
Max processing diameter
FHRC-250/500-4: Φ 250/4pcs, Φ 500/2pcs mm (Φ 9.84/0.16pcs, Φ 19.69/0.08pcs in)
CHRC-250/500-4: Φ 250/4pcs, Φ 500/2pcs mm (Φ 9.84/0.16pcs, Φ 19.69/0.08pcs in)
Processing length
FHRC-250/500-4: 50-1500 mm (1.97-59.06 in)
CHRC-250/500-4: 50-1500 mm (1.97-59.06 in)
Main motor
FHRC-250/500-4: 11 × 2 / 15 × 2 (Optional) kw (14.75 × 2.68 / 20.12 × 2.68 (Optional) hp)
CHRC-250/500-4: 11 × 2 / 15 × 2 (Optional) kw (14.75 × 2.68 / 20.12 × 2.68 (Optional) hp)
Gross power
FHRC-250/500-4: 29.5 / 37.5 (Optional) kw (39.56 / 50.29 (Optional) hp)
CHRC-250/500-4: 29.5 / 37.5 (Optional) kw (39.56 / 50.29 (Optional) hp)
Outline dimension
FHRC-250/500-4: 3600 × 2000 × 3200 mm (141.73 × 78.74 × 125.98 in)
CHRC-250/500-4: 3600 × 2000 × 3200 mm (141.73 × 78.74 × 125.98 in)
Gross weight
FHRC-250/500-4: ≈5500 kg (≈5.50 t)
CHRC-250/500-4: ≈5500 kg (≈5.50 t)
Water consumption
FHRC-250/500-4: ≈4
CHRC-250/500-4: ≈4
Why Choose Us
-
4-Axis Precision Control
Advanced 4-axis CNC system ensures accurate shaping of cylindrical and decorative stone elements with synchronized movements.
-
Multi-Piece Processing
Capable of processing multiple smaller columns simultaneously or fewer larger ones, improving productivity and efficiency.
-
Flexible Operation System
Equipped with PLC/CNC control and inverter technology for smooth speed variation, easy handling, and reliable performance.
Industrial Versatility
Ideal for stone factories, monument makers, architectural workshops, and infrastructure projects requiring high-efficiency production of balusters, columns, and decorative cylindrical stone components.
