YHQJ-2500

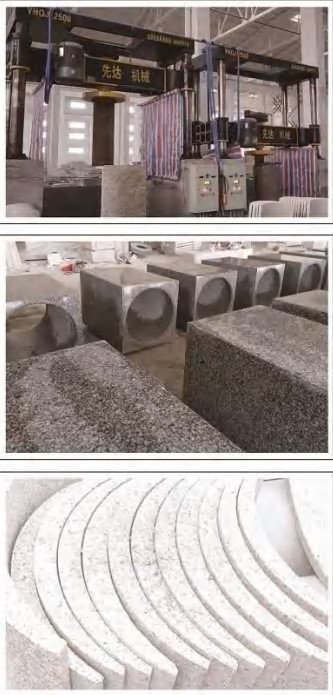

This machine features motorized vertical feeding and automatic slicing to fulfill cycle cutting. It is specifically designed for cutting blocks into arc-shaped granite slabs. When using a single bucket saw blade, the center thickness is slightly larger than the sides; however, using concentric double arc blades allows for uniform thickness in arc slab production.
Technical Specifications
Max column of diameter
YHQJ-2500: Φ2500 mm (Φ98.43 in)
Lifting travel
YHQJ-2500: 1500 mm (59.06 in)
Front & back slice travel
YHQJ-2500: 3000 mm (118.11 in)
Main motor
YHQJ-2500: 22 / 30 kw (29.50 / 40.23 hp)
Gross power
YHQJ-2500: 26.5 / 34.5 kw (35.54 / 46.27 hp)
Outline dimension
YHQJ-2500: 3800 × 6300 × 4850 (Including foundation) mm (149.61 × 248.03 × 190.94 (Including foundation) in)
Gross weight
YHQJ-2500: ≈8000 kg (≈8.00 t)
Water consumption
YHQJ-2500: ≈8
Why Choose Us
-
Motorized Vertical Feeding
Precision motorized vertical movement for consistent cutting pressure and depth.
-
Automatic Slicing
Equipped with automatic cycle cutting functionality for high-volume slab production.
-
Arc Slab Specialist
Optimized for processing special-shaped curved slabs and hollow column components.
Industrial Versatility
Perfect for large-scale projects requiring curved architectural elements, arc-shaped wall cladding, and hollow column sections.
