ZDCM-400A / 400B / 400B-MC

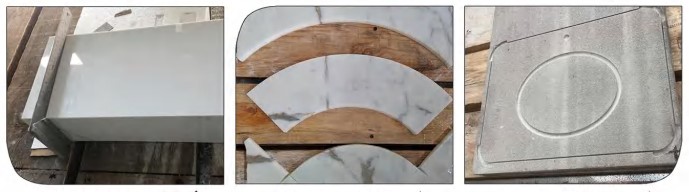

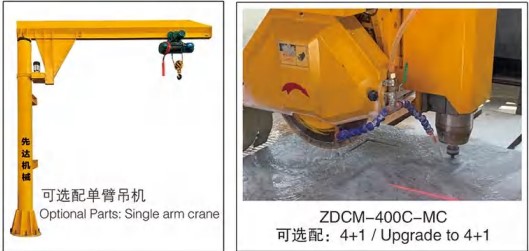

This machine adopts a microcomputer system, making it easy to operate. It features an integrated structure for easy installation. The machine body frame is processed and formed in one pass by a CNC gantry milling center, using high-precision linear guide sliders, grinding-grade ball screws, and a high-end servo system. This greatly improves the equipment's stability, processing accuracy, and production efficiency. It is suitable for various large-scale plate processing tasks with high precision requirements and high value.
Technical Specifications
Control system type
ZDCM-400A: PLC Servo Control
ZDCM-400B: PLC Servo Control
ZDCM-400B-MC: PLC Servo Control
Blade diameter
ZDCM-400A: Φ300 – Φ400 mm (Φ11.81 – Φ15.75 in)
ZDCM-400B: Φ300 – Φ400 mm (Φ11.81 – Φ15.75 in)
ZDCM-400B-MC: Φ300 – Φ400 mm (Φ11.81 – Φ15.75 in)
Worktable size
ZDCM-400A: 3200 × 2000 mm (125.98 × 78.74 in)
ZDCM-400B: 3200 × 2000 mm (125.98 × 78.74 in)
ZDCM-400B-MC: 3200 × 2000 mm (125.98 × 78.74 in)
Max processing size
ZDCM-400A: 3200 × 2000 × 80 mm (125.98 × 78.74 × 3.15 in)
ZDCM-400B: 3200 × 2000 × 80 mm (125.98 × 78.74 × 3.15 in)
ZDCM-400B-MC: 3200 × 2000 × 80 mm (125.98 × 78.74 × 3.15 in)
Worktable tilting degree
ZDCM-400A: 0, 85°
ZDCM-400B: 0, 85°
ZDCM-400B-MC: 0, 85°
Cutting head rotation degree
ZDCM-400A: 0–90°
ZDCM-400B: 0–360°
ZDCM-400B-MC: 0–360°
Cutting head rotation control mode
ZDCM-400A: Stepper motor control
ZDCM-400B: Servo motor control
ZDCM-400B-MC: Servo motor control
Cutting head chamfer rotating degree
ZDCM-400A: 0, 45°
ZDCM-400B: 0, 45°
ZDCM-400B-MC: 0, 45°
Main motor power
ZDCM-400A: 15 kw (20.12 hp)
ZDCM-400B: 15 kw (20.12 hp)
ZDCM-400B-MC: 15 + 5.5 kw (20.12 + 7.38 hp)
Outline dimension
ZDCM-400A: 5000 × 3100 × 2600 mm (196.85 × 122.05 × 102.36 in)
ZDCM-400B: 5000 × 3100 × 2600 mm (196.85 × 122.05 × 102.36 in)
ZDCM-400B-MC: 5000 × 3100 × 2600 mm (196.85 × 122.05 × 102.36 in)
Water consumption
ZDCM-400A: ~2
ZDCM-400B: ~2
ZDCM-400B-MC: ~2
