DNFX - 1300/1400

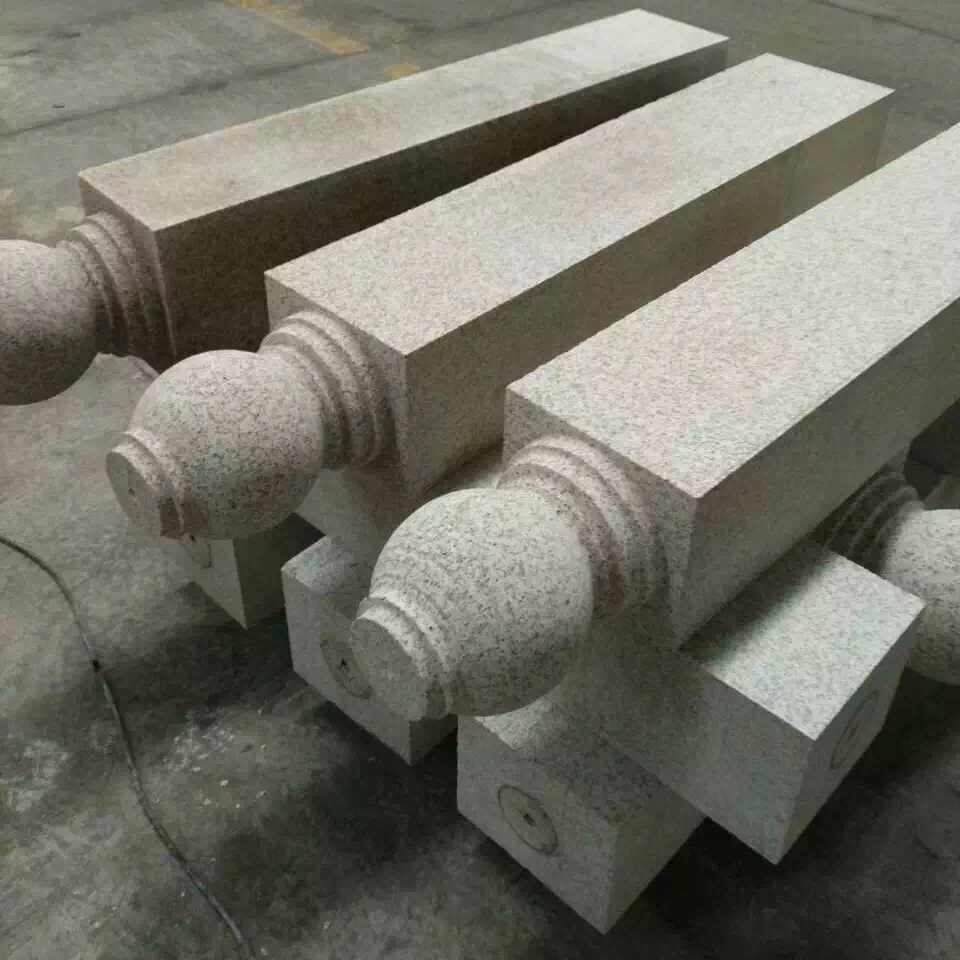

This machine adopts PLC / CNC system with double blades, it’s suitable for profiling the linear, also it can cut the square balusters. With extra rotating table, it can cut the curve linear. Easy operation makes it popular especially for new operators.
Technical Specifications
Blade Diameter (mm)
DNFX-1300: φ300–φ600 (φ11.81–φ23.62 in)
DNFX-1400: φ300–φ600 (φ11.81–φ23.62 in)
Max Lifting Travel of Cutting Frame (mm)
DNFX-1300: 700
DNFX-1400: 700
Trolley Size (mm)
DNFX-1300: 3000×1300 (118.11×51.18 in)
DNFX-1400: 3500×1400 (137.80×55.12 in)
Main Motor (kW)
DNFX-1300: 15
DNFX-1400: 15
Gross Power (kW)
DNFX-1300: 18
DNFX-1400: 18
Outline Dimension (mm)
DNFX-1300: 5500×2300×1800 (216.54×90.55×70.87 in)
DNFX-1400: 6000×2400×1800 (236.22×94.49×70.87 in)
Gross Weight (kg)
DNFX-1300: 4000
DNFX-1400: 4500
Water Consumption (m³/h)
DNFX-1300: 6
DNFX-1400: 6
Machine in Action
Why Choose Us
-
Quick Profile Change
Modular head cartridges allow profile switches — ogee, bullnose, pencil, bevel — in under 5 minutes.
-
Continuous Feed Conveyor
Variable-speed rubber conveyor ensures stable slab feed and prevents chipping on delicate edges.
-
Closed-Loop Water System
Integrated water filtration and recirculation reduces operating costs and site water usage.
Industrial Versatility
Ideal for slab processing factories, kitchen countertop fabricators, and tile edge-polishing lines needing consistent profile quality at high throughput.
