CGWS-3500-22FW

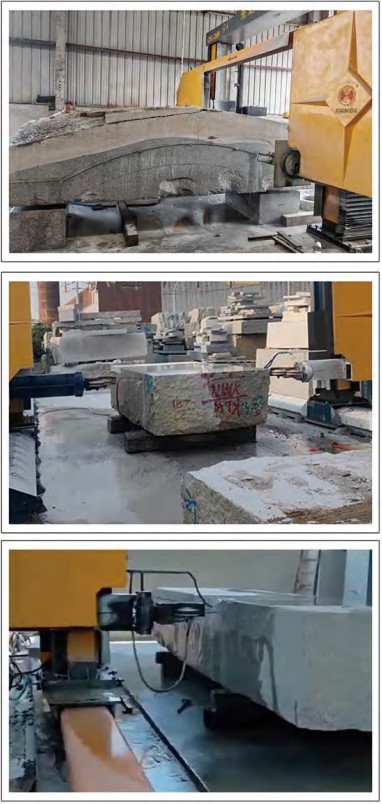

This machine adopts a gantry-type moving structure, allowing raw materials to be processed directly on the ground without trolley lifting or turning. The cutting mechanism uses a tension-sided guide rail and synchronized lifting system through intermediate transmission, ensuring high stability, high efficiency, and precise cutting performance for large-scale stone materials.
Technical Specifications
Control System Type
CGWS-3500-22FW: CNC Control
Max Processing Size
CGWS-3500-22FW: 3500 × 3500 × 2200 mm (137.80 × 137.80 × 86.61 in)
Wire Speed
CGWS-3500-22FW: 20 – 40
Main Motor
CGWS-3500-22FW: 15 kW (20.12 hp)
Outline Dimension
CGWS-3500-22FW: 9000 × 5800 × 5600 mm (354.33 × 228.35 × 220.47 in)
Gross Weight
CGWS-3500-22FW: ≈ 15000 kg (≈ 15.00 t)
Water Consumption
CGWS-3500-22FW: ≈ 4
Why Choose Us
-
Gantry Moving Structure
Direct ground processing design eliminates trolley lifting and turning, improving operational efficiency and reducing handling time.
-
Synchronized Lifting System
Advanced intermediate transmission mechanism ensures smooth synchronized lifting with stable and accurate cutting performance.
-
High Precision & Stability
Designed for large-scale stone cutting applications with enhanced cutting precision, machine stability, and long-term durability.
Industrial Versatility
Suitable for processing granite, marble, and other large stone materials in high-capacity industrial production environments.
