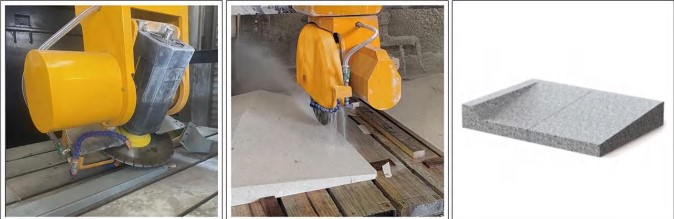

Expand 600H / 600HL
4 Axis bridge cutting machine adopts four-axis linkage CNC system control, bus absolute value servo (with power-off memory function), high-precision linear guide, Rack drive, oil-immersed track structure, with multi-function, high precision and strong stability and other advantages.
Technical Specifications
Control system type
Expand 600H: High-end 4 Axis System
Expand 600HL: High-end 4 Axis System
Blade diameter
Expand 600H: Φ350 – Φ600 mm (Φ13.78 – Φ23.62 in)
Expand 600HL: Φ350 – Φ600 mm (Φ13.78 – Φ23.62 in)
Worktable size
Expand 600H: 3500 × 2000 mm (137.80 × 78.74 in)
Expand 600HL: 3500 × 2000 mm (137.80 × 78.74 in)
Max processing size
Expand 600H: 3500 × 2000 × 180 mm (137.80 × 78.74 × 7.09 in)
Expand 600HL: 3500 × 2000 × 180 mm (137.80 × 78.74 × 7.09 in)
Worktable tilting degree
Expand 600H: 0, 85°
Expand 600HL: 0, 85°
Cutting head rotation degree
Expand 600H: 0–360°
Expand 600HL: 0–360°
Cutting head rotation control mode
Expand 600H: Servo motor control
Expand 600HL: Servo motor control
Cutting head chamfer rotating degree
Expand 600H: Not available
Expand 600HL: 0–40° Servo Control
Main motor power
Expand 600H: 22 Permanent magnet motors kw (29.50 Permanent magnet motors hp)
Expand 600HL: 22 Permanent magnet motors kw (29.50 Permanent magnet motors hp)
Outline dimension
Expand 600H: 5800 × 3600 × 3350 mm (228.35 × 141.73 × 131.89 in)
Expand 600HL: 5800 × 3600 × 3350 mm (228.35 × 141.73 × 131.89 in)
Water consumption
Expand 600H: ~2
Expand 600HL: ~2
