THCD-5000
This machine uses a large torque oblique gearbox, which makes it durable. Features computer automatic control load and third-order automatic track transmission. It not only fixes stone well but also automatically pulls the core. The drilling process is extremely smooth with low noise and power consumption.
Technical Specifications
Max diameter
THCD-5000: Φ600 mm (Φ23.62 in)
Main motor
THCD-5000: 30 kw (40.23 hp)
Max processing length
THCD-5000: 5000 mm (196.85 in)
Gross weight
THCD-5000: 5000 kg (5.00 t)
Outline dimension
THCD-5000: 15500 × 1600 × 1500 mm (610.24 × 62.99 × 59.06 in)
Water consumption
THCD-5000: ≈4
Why Choose Us
-
Large Torque Gearbox
Equipped with a durable oblique gearbox for handling heavy drilling loads.
-
Auto-Load Control
Computerized automatic control manages the load for smooth, high-efficiency operation.
-
Auto Core Pulling
Third-order automatic track transmission fixes stone securely and extracts the core automatically.
Industrial Versatility

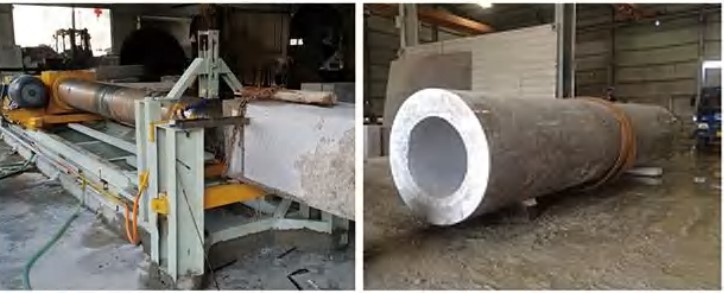

Specially designed for horizontal stone core extraction, perfect for long solid columns and large-scale industrial stone work.
