ZMFX - 2500 / CMFX-2500
This machine adopts a vertical lathe structure principle in its design. It features computer automatic profiling and lifting, effectively eliminating the high consumption and poor precision associated with manual processing. This advanced technology significantly reduces overall processing costs.
Technical Specifications
Control system
ZMFX-2500: PLC
CMFX-2500: CNC
Max cutting dimension
ZMFX-2500: Φ2500 mm (Φ98.43 in)
CMFX-2500: Φ2500 mm (Φ98.43 in)
Max vertical lifting travel
ZMFX-2500: 1150 mm (45.28 in)
CMFX-2500: 1150 mm (45.28 in)
Main motor
ZMFX-2500: 11 kw (14.75 hp)
CMFX-2500: 11 kw (14.75 hp)
Gross power
ZMFX-2500: 15 kw (20.12 hp)
CMFX-2500: 15 kw (20.12 hp)
Outline dimension
ZMFX-2500: 4300 × 2500 × 3000 mm (169.29 × 98.43 × 118.11 in)
CMFX-2500: 4300 × 2500 × 3000 mm (169.29 × 98.43 × 118.11 in)
Gross weight
ZMFX-2500: ≈4500 kg (≈4.50 t)
CMFX-2500: ≈4500 kg (≈4.50 t)
Water consumption
ZMFX-2500: ≈2
CMFX-2500: ≈2

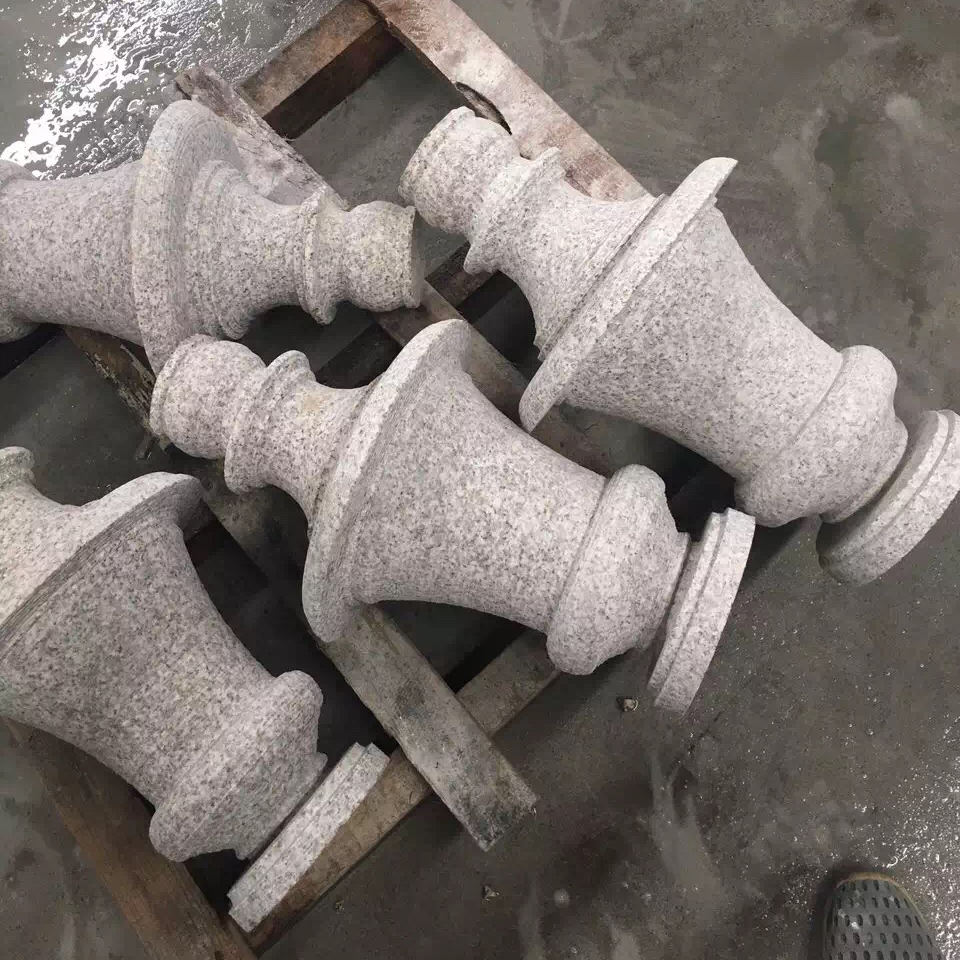

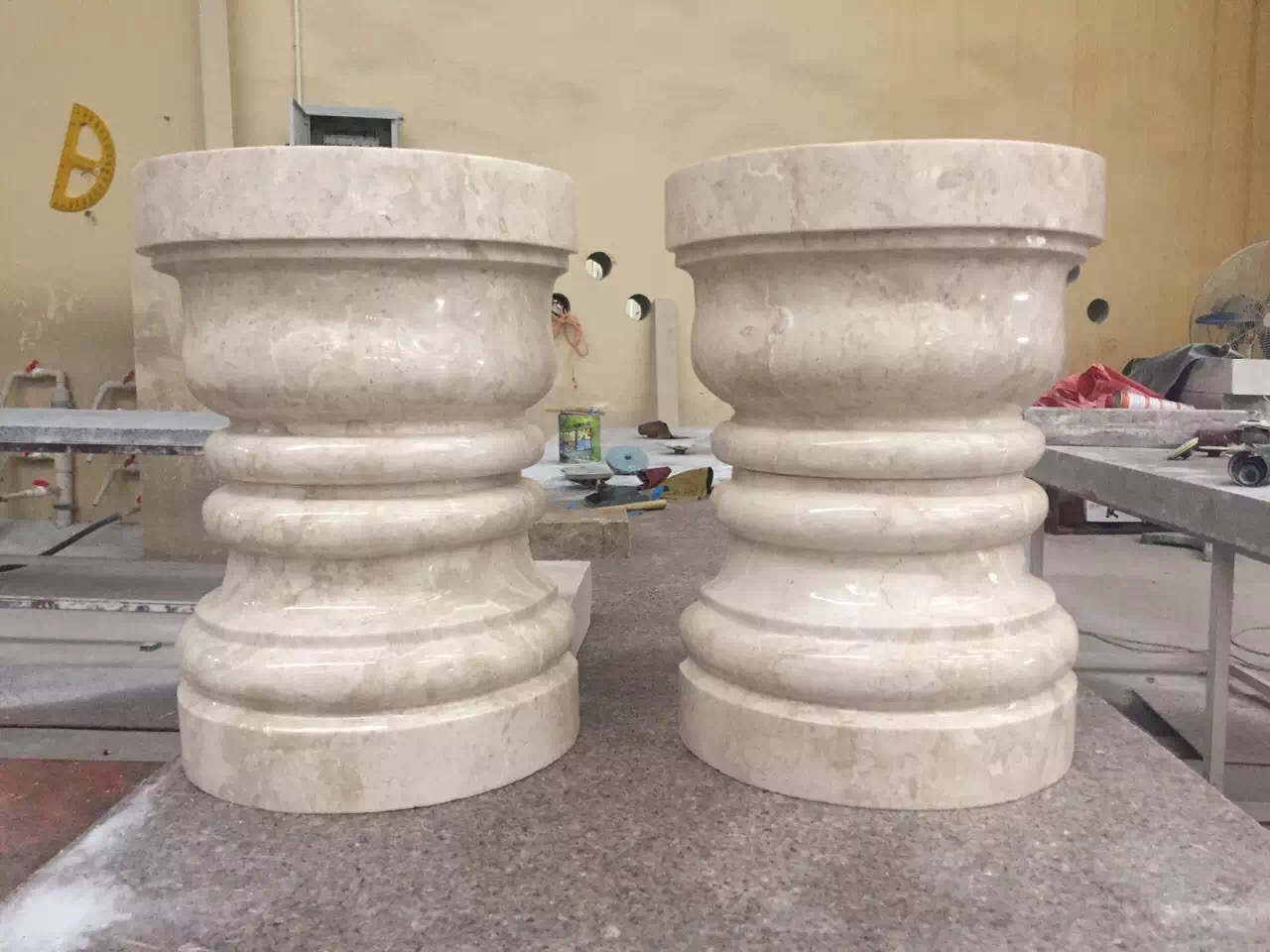

Machine in Action
Why Choose Us
-
Powered Rotary Platform
Smooth servo-driven rotation enables cylindrical column cutting, spiral fluting, and helical architectural details.
-
Synchronized Z & Rotation
CNC coordination of vertical and rotational axes creates complex sculptural surface geometries.
-
CAD/CAM Integration
Accepts architectural profiles and 3D files for custom column capital design and detailing.
Industrial Versatility
Essential for architectural studios, temple construction firms, and heritage restoration specialists creating sculptural columns and decorative cylindrical elements.
