Trend 600 / Promote 600

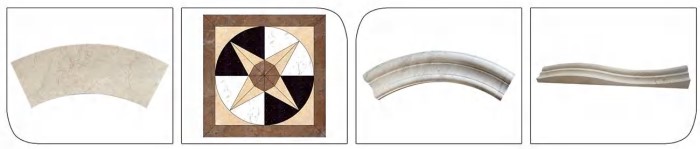

5 Axis Bridge cutting machine adopts 5 Axis linkage CNC System Control, Bus-based absolute value servo (with memory function for power off), high-precision linear guide rail, ball screw transmission, oil-immersed track structure, with multi-function, high precision, strong stability and other advantages. Its processing functions include: arbitrary-shaped lines, fan-shaped plates, wash basin and special-shaped edge profiling, etc. The equipment has multiple processing functions, wide application, small space, and simple operation. It is a great equipment for stone processing.
Technical Specifications

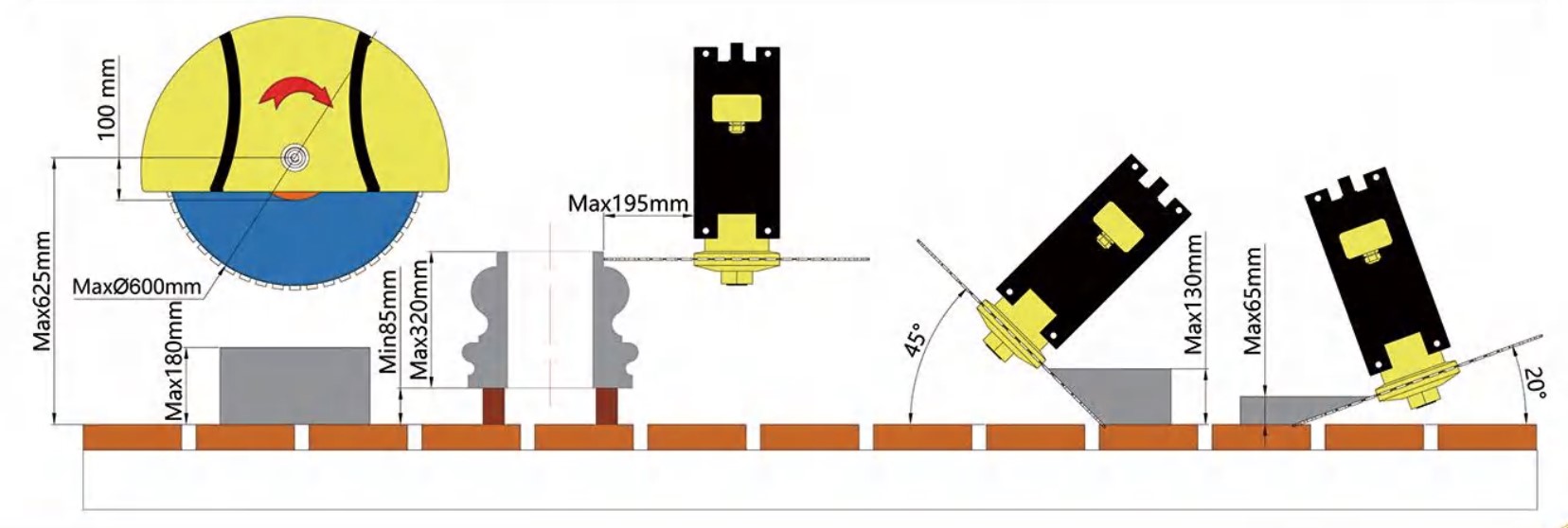

Blade diameter range
Trend 600: Φ350 – Φ600 mm (Φ13.78 – Φ23.62 in)
Promote 600: Φ350 – Φ600 mm (Φ13.78 – Φ23.62 in)
Max processing size
Trend 600: 3400 × 2000 × 180 mm (133.86 × 78.74 × 7.09 in)
Promote 600: 3400 × 2000 × 180 mm (133.86 × 78.74 × 7.09 in)
Lifting stroke
Trend 600: 500 mm (19.69 in)
Promote 600: 500 mm (19.69 in)
Worktable size
Trend 600: 3400 × 2000 mm (133.86 × 78.74 in)
Promote 600: 3400 × 2000 mm (133.86 × 78.74 in)
Table tilting degree
Trend 600: 0, 85°
Promote 600: 0, 85°
Head rotating degree
Trend 600: 0–360°
Promote 600: 0–360°
Head tilting degree
Trend 600: 0–90°
Promote 600: 0–90°
Air speed
Trend 600: 25
Promote 600: 25
Repeated accuracy of positioning
Trend 600: < 0.1mm/1000 mm (< 0.00mm/39.37 in)
Promote 600: < 0.1mm/1000 mm (< 0.00mm/39.37 in)
Main motor
Trend 600: 22 (Permanent magnet motor) kw (29.50 (Permanent magnet motor) hp)
Promote 600: 22 (Permanent magnet motor) kw (29.50 (Permanent magnet motor) hp)
Gross power
Trend 600: 30 kw (40.23 hp)
Promote 600: 30 kw (40.23 hp)
Water consumption
Trend 600: ~2
Promote 600: ~2
Outline dimension
Trend 600: 5800 × 3600 × 3900 mm (228.35 × 141.73 × 153.54 in)
Promote 600: 5800 × 3600 × 3900 mm (228.35 × 141.73 × 153.54 in)
Gross weight
Trend 600: ~7500 kg (~7.50 t)
Promote 600: ~7500 kg (~7.50 t)
